Description

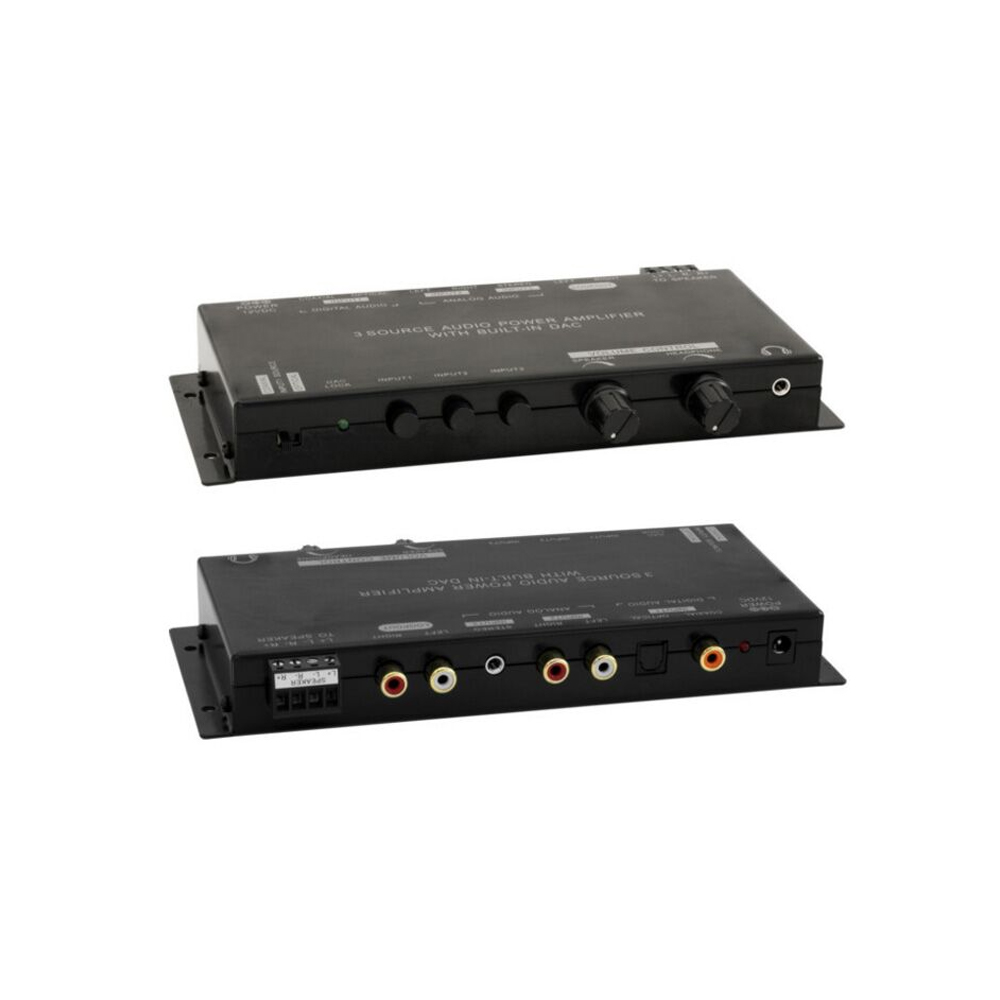

Audio Power Amplifier 3 Source 1 Zone ( ARC-1299 ) – Arco
Small size Audio Power Amplifier and compact. Three-in, One Out with Headphone Amp. Large detachable terminal block(supplied) for quick and easy installation in a structured-wiring cabinet.
Also suitable for wall-mounting. Screw terminals handle wire sizes from 24 to 12 gauge.
Specifications
Speaker Audio Power Amplifier:
Amplifier Type: Stereo Class-D
Output power: 15W(RMS) per channel (@ RL=4 ohm)
THD+N: 0.06 % (@ RL=8 ohm, f = 1 kHz)
Minimum Load Resistance: 4 ohm
Includes Speaker Protection circuit.
Earphone Audio Power Amplifier:
• Output power:105mW(RMS) per channel
• THD+N: 0.05 % (@ RL=16 ohm, f = 1 kHz)
• Minimum Load Resistance: 16 ohm
• Digital Input Type: Coaxial & Optical
• Support Digital Audio Format: LPCM
• Input Impedance: 75 ohms
• Frequency Response: 32 – 192KHz sample rate
Included:
1x Amplifier
1x Power Supply
