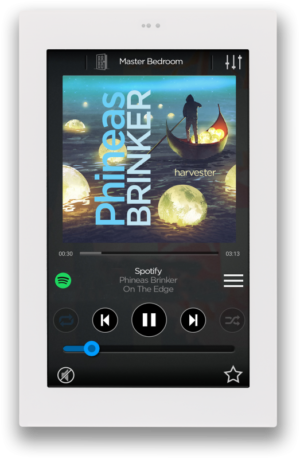

XTS5.5 Wall-Mounted Color Touchscreen – Russound

$2,434.74 +GST

The Russound XTS5.5 is an elegant, in-wall touchscreen with a 5.5” FHD display that runs an embedded version of the MyRussound™ App to control any Russound audio systems that connect to a home network like the MCA-Series controllers or the MBX-Series and XStream-Series of audio streaming solutions. The XTS5.5 provides metadata feedback from compatible sources, including song titles, artist name, album titles, and album art.

1 in stock

SKU: XTS5.5 Categories: , , , Brand:


XTS5.5 Wall-Mounted Color Touchscreen

By placing the powerful MyRussound app in a permanent location on a wall, the XTS5.5 gives you full and easy control of your Russound system, eliminating the need to use your phone or tablet to simply change the volume or change the music.



  • Elegant, low-profile design
  • 5.5″ (14 cm) high-performance IPS TFT 1920 x 1080 FHD display
  • Powerful quad-core processor
  • Installs in either portrait or landscape orientation
  • Adjustable display brightness and screen timeout settings
  • Supports the MCA-66, MCA-88, MCA-88X, MBX-PRE, MBX-AMP XSource, XZone4, XZone70V
  • Controls any zone within a Russound system
  • Installs Easily in a 1-Gang Box or Low Profile P-Ring as well as 60mm Euro style boxes
  • Extends from wall only 0.55″ (14 mm) when installed


  • Shipping Dimensions: 7.44″ (W) x 4.02″ (H) x 2.64″ (D) / (18.9 x 10.2 x 6.7cm)
  • Product Dimensions: 3.44″ (W) x 5.85″ (H) x 1.33″ (D) / (8.75 x 14.85 x 3.37 cm)
  • Shipping Weight: 1.1 lbs (0.5 kg)
  • Connection: Gigabit Ethernet, with 802.3af POE
  • Display: 5.5″ (14 cm) high-performance IPS TFT 1920 x 1080 FHD display
  • Power Requirement(s): PoE Power 802.3af
  • Processor: 64-bit quad core Cortex A53

Additional information

Shipping weight 0.5 kg
Shipping dimensions 251 × 146 × 30.0 mm
