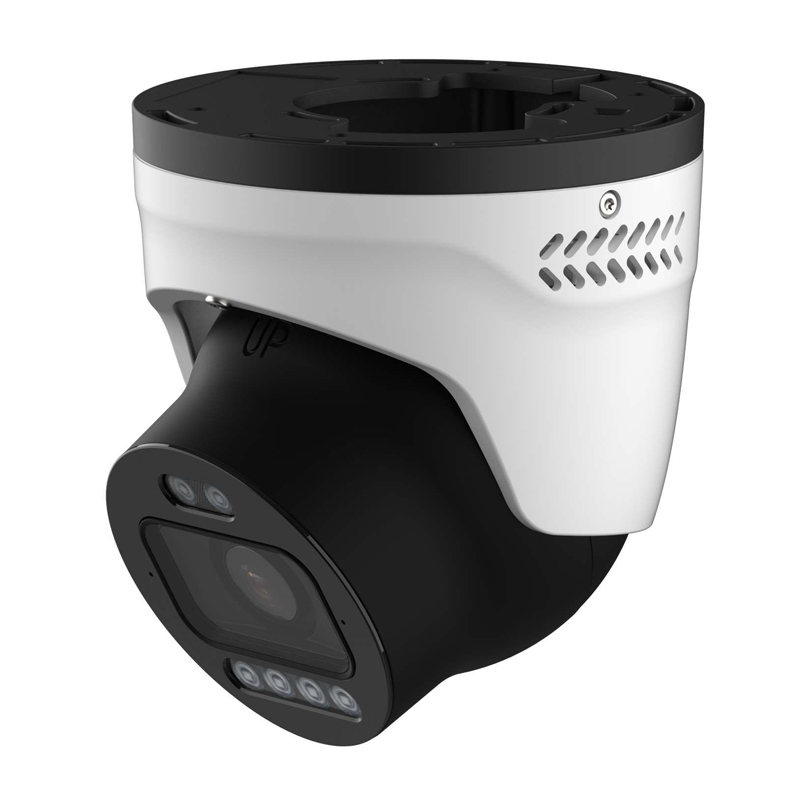

AI Motorized TrueColor Turret Camera (MS-CQ8131-FHYPG1) – Milesight

$699.00 +GST

NDAA Compliance (The fully NDAA-compliant products are well suited for government, defense and a range of projects subject to the NDAA.)
Precision Imaging Technology (Utilizing AA process and a high-performance day/night focus lens, it achieves stunning image quality with true-to-life clarity.)
Smart Hybrid Light (Auto-switching between IR and warm white light reduces light pollution and ensures full-color clarity, day or night.)
Red and Blue Lights Deterrence (Upon detecting suspicious activity, automatically triggers a bright strobe light as a powerful visual deterrent.)
Two-Way Audio (Dual microphones and a powerful speaker enable instant, clear communication for smarter, safer responses.)
One-Click Arming & Disarming (Easily activate or deactivate alarm responses with a single click, ensuring smarter resource usage and greater operational flexibility.)
Easy Remote Operation & Maintenance (The Milesight Device Portal makes remote management and maintenance simple and efficient.



1 in stock

Add to Wishlist
SKU: MS-CQ8131-FHYPG1 Categories: , , , , , , , Tags: , , , , , , , , , , Brand:

Description

Model MS-CQ8131-FHYPG1
Image Sensor 1/2.65” Progressive Scan CMOS
Min. Illumination 0.004 [email protected] (Color, 30 IRE) 0 lux (Illuminator on)
WDR 120dB Super WDR
Shutter Time 1/100000s ~ 1s
Day/Night Mode Day / Night / Auto / Customize / Schedule
DORI Distance D: 93.9m~304m O: 37m~120m R: 18.5m~59.8m I: 9.3m~29.9m
OODPCVS O (W 105.3, T 304.7), O (W 52.7, T 152.4), D (W 26.4, T 76.2), P (W 16.9, T 48.8), C (W 8.5, T 24.4), V (W 4.3, T 12.2), S (W 1.4, T 4.1)
S/N >56dB
Illuminator
Illuminator Type 4 x Smart Hybrid Lights (Mixed IR and White Warm Lights)
IR Wave Length 850nm
Illumination Distance Up to 60m (IR Light), Up to 60m (White Warm Light)
Illuminator On/Off Control Auto, Manual
Smart Hybrid Lights Support
Red and Blue Flashing Lights 1 x Red Light and 1 x Blue Light
Lens
Lens [email protected]
Aperture F1.2
Field of View H100.2°~H27°, V117.9°~V31.1°, D51.9~D15.1°
Close Focus Distance 0.5m
Camera Angle Adjustment Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotation: 0° ~ 360°
Mount Φ16
Video
Max. Image Resolution 3840×2160
Primary Stream 60Hz: 30fps@ (3840×2160, 3200×1800, 2688×1520, 1920×1080, 1280×720) 50Hz: 25fps@ (3840×2160, 3200×1800, 2688×1520, 1920×1080, 1280×720)
Secondary Stream 60Hz: 30fps@ (704×576, 640×480, 640×360) 50Hz: 25fps@ (704×576, 640×480, 640×360)
Tertiary Stream 60Hz: 30fps@ (1920×1080, 1280×720, 704×576, 640×480, 640×360) 50Hz: 25fps@ (1920×1080, 1280×720, 704×576, 640×480, 640×360)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps~16Mbps (CBR/VBR Adjustable)
AI ISP Support
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI Up to 8 Areas
Image Setting Brightness / Contrast / Saturation / Sharpness
Image Enhancement BLC, HLC, 2D DNR, 3D DNR, AWB, Defog, AGC, LDC, Anti-flicker, Deblur, etc.
Image Rotation Off, Rotating 180°, Flip Horizontal, Flip Vertical, Clockwise 90°, Anticlockwise 90°
Audio
Built-in Microphone Yes, Dual Microphone
Built-in Speaker Support, max.sound pressure level: 10cm: 95dB
Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Interface
Alarm I/O 1/1
Audio I/O 1/1
Power Supply PoE (802.3at) / DC 12V±25%
Network
Ethernet 1 x RJ45 10M /100M Ethernet Port
Network Storage NAS(Support NFS, SMB/CIFS), ANR
Protocol IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, LLDP, SIP, VPN, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2
Intelligent Analytics
Video Analysis Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed
Object Counting & Count the number of objects crossing the line, optionally human and vehicle,
Report Support regional people counting for up to 4 detection areas
Heat Map The built-in statistical behavior analysis enables you to identify the busiest areas within the environment
Face Capture Capture faces, get real-time snapshots and integrate with third-party systems for advanced analysis
Event
One-Click Disarm Support
Basic Event Motion Detection, Tamper Detection, Audio Alarm, External Input, External Output, etc.
Exception Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, etc.
Event Action FTP Upload, SMTP Upload, Snapshot, Record, External Output, Play Audio, Alarm to SIP Phone, HTTP Notification, Warning Light, etc.
System
Watermark Support
Storage Support Micro SD/SDHC/SDXC Card Local Storage, up to 1TB
SIP/VoIP Support Yes, Voice & Video-over-IP
System Compatibility ONVIF Profile G&M&S&T, One API
General
Working Temperature -40℃ ~ 60℃
Working Humidity 0~95% RH (Non-condensing)
Surge Protection 4KV
Power Consumption Min.: 3.67W (DC 12V),4.4W (PoE) Max.: 12.14W (DC 12V), 13.75W (PoE)
Casing Material Metal
Net Weight Approx. 1.0kg
Gross Weight Approx. 1.3kg
Dimensions Φ122mm X 128mm
Warranty 3 Years/5 Years (Optional)
Certifications
EMC CE-EMC (EN 55032, EN 55035, EN61000), FCC (PART 15B)
Safety CE-LVD (EN IEC 62368-1)
Environment CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU)
Protection IP67, IK10

Additional information

Weight .7 kg
Dimensions 134 × 126 × 100 mm
