Description

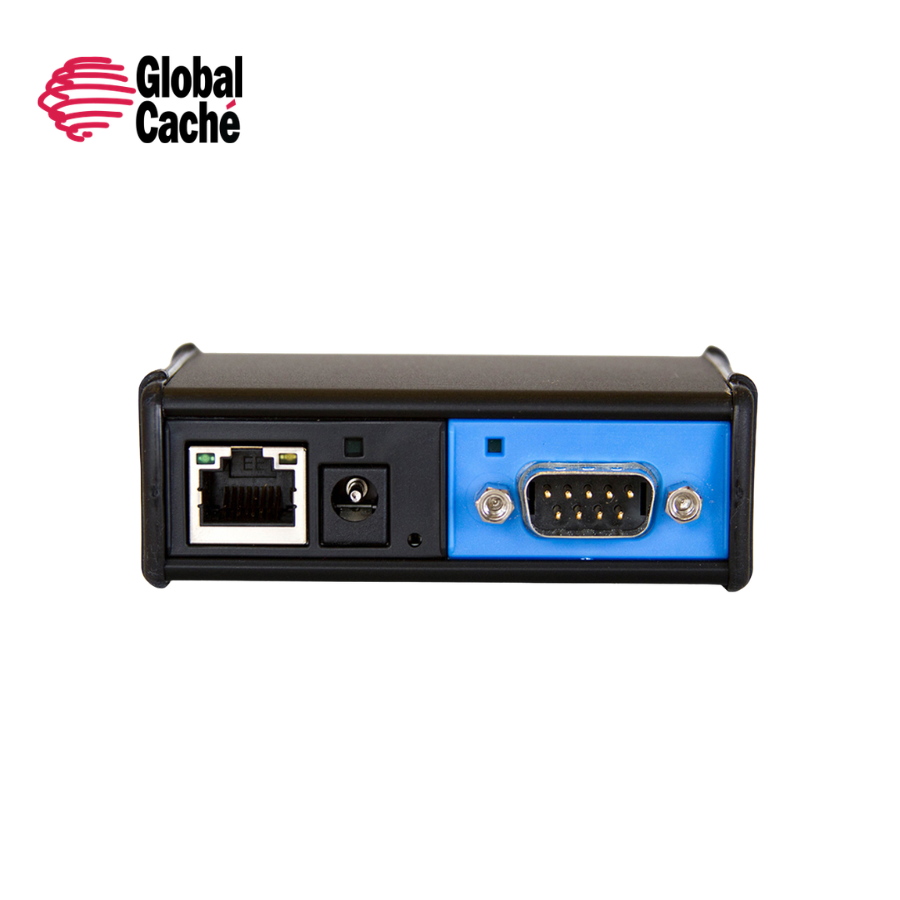

The Global Caché IP2SL-P is a compact TCP/IP to RS232 interface designed to bring serial-controlled equipment onto a wired Ethernet network. It provides a practical bridge between existing RS232 devices and modern IP-based control systems.
Rather than replacing equipment that still performs its intended function, the IP2SL-P allows compatible serial devices to remain part of a wider networked system. Typical applications include displays, audio equipment, computers, motorised window shades and other RS232-controlled devices.
The IP2SL-P features a 10/100 Mbps Ethernet connection, bidirectional RS232 communication via a male DB9 connector and 802.3af Power over Ethernet, allowing power and network connectivity to be supplied through a single Ethernet connection.
Features
- TCP/IP to RS232 serial interface
- 802.3af Power over Ethernet (PoE)
- Bidirectional serial communication
- Male DB9 serial connector
- Serial data rates from 1200 baud to 115.2 Kbaud
- Hardware RTS/CTS flow control
- RJ45 10/100 Mbps Ethernet connection
- Supports TCP, DHCP and HTTP standards
- Integrated web server for configuration
- Compact enclosure for easy installation
Applications
- AV and automation systems
- Network integration of RS232-controlled equipment
- Adding IP connectivity to existing devices
- Displays and professional AV equipment
- Motorised window shades
- Residential, commercial and education projects
Specifications
| Model | IP2SL-P |
| Product Type | Wired TCP/IP to Serial Interface with PoE |
| Network Connection | RJ45, 10/100 Mbps Ethernet |
| Network Standards | TCP, DHCP and HTTP |
| Serial Interface | RS232 |
| Serial Connector | Male DB9 |
| Serial Data Rate | 1200 baud to 115.2 Kbaud |
| Flow Control | Bidirectional hardware RTS/CTS with parity support |
| Power | 802.3af Power over Ethernet (PoE) |
| Configuration | Integrated web server and TCP/IP setup commands |
| Dimensions | 83 × 57 × 32 mm |
