Description

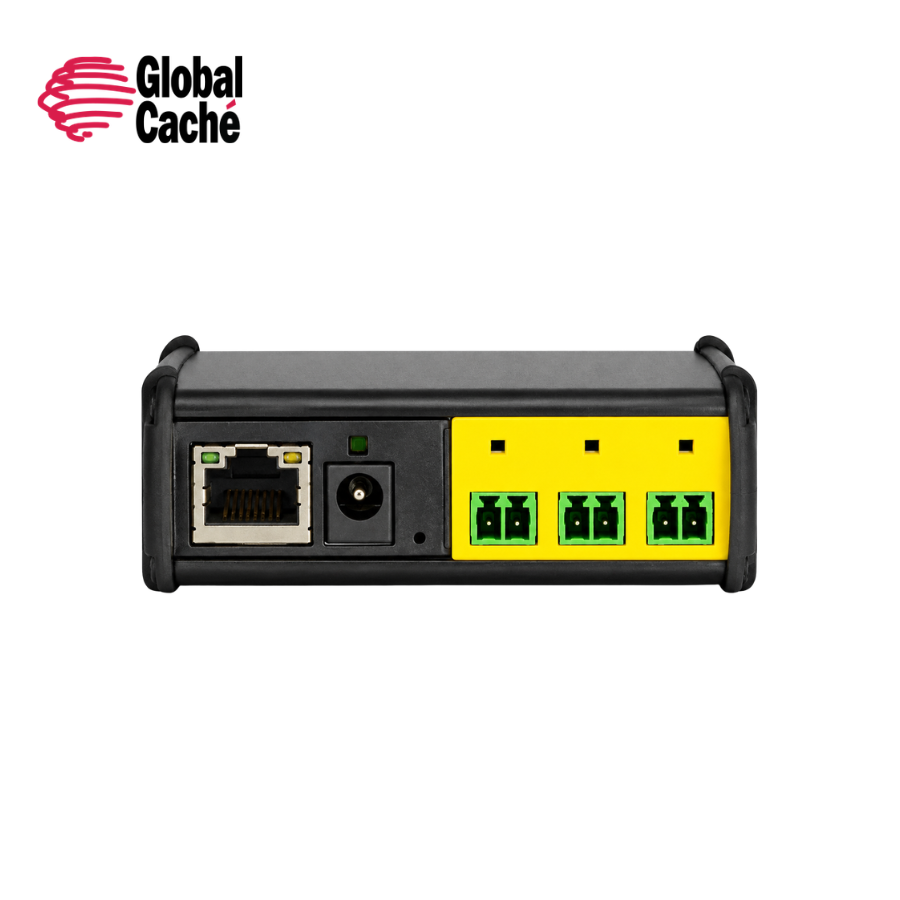

The Global Caché IP2CC-P is a compact wired TCP/IP to contact closure interface designed to connect compatible low-voltage devices and systems to a networked control environment. It provides three independently controlled, normally open relay outputs, allowing commands from an IP-based control system to trigger compatible equipment over a wired Ethernet network.
Each relay output is rated at up to 24V AC/DC and 0.5A, making the IP2CC-P suitable for switching compatible low-voltage circuits. Transient voltage suppression and pluggable screw terminals provide straightforward and reliable integration.
The IP2CC-P is a practical option for integrating existing devices and systems that use contact closure control into AV, automation and other IP-based environments, without replacing equipment that is already in service.
With 10/100 Mbps Ethernet and IEEE 802.3af Power over Ethernet, both network connectivity and power can be supplied through a single Ethernet cable, helping simplify installation where a local power source is not convenient.
Features
- Wired TCP/IP to contact closure interface
- 3 independently controlled, normally open relay outputs
- Relay rating of up to 24V AC/DC, 0.5A maximum
- Transient voltage suppression
- Pluggable screw terminal connections
- IEEE 802.3af Power over Ethernet (PoE)
- RJ45 10/100 Mbps Ethernet connection
- Supports TCP, DHCP and HTTP standards
- Integrated web server for configuration
- Flash-upgradeable firmware
- Compact enclosure for easy installation
Applications
- AV and automation systems
- Adding IP-based control to compatible low-voltage devices
- Triggering equipment through a networked control system
- Integrating existing contact closure-controlled equipment into IP-based environments
- Control and automation projects
- Residential and commercial installations
Specifications
| Model | IP2CC-P |
| Product Type | Wired TCP/IP to Contact Closure Interface with PoE |
| Network Connection | RJ45, 10/100 Mbps Ethernet |
| Network Standards | TCP, DHCP and HTTP |
| Relay Outputs | 3 independently controlled relay outputs |
| Contact Type | Normally Open (N.O.) |
| Relay Contact Rating | 24V AC/DC, 0.5A maximum |
| Terminal Connection | Pluggable screw terminal |
| Protection | Transient voltage suppression |
| Power | IEEE 802.3af Power over Ethernet (PoE) |
| Configuration | Integrated web server and TCP/IP setup commands |
| Firmware | Flash upgradeable |
| Dimensions | Approximately 83 × 57 × 32 mm |
