Description

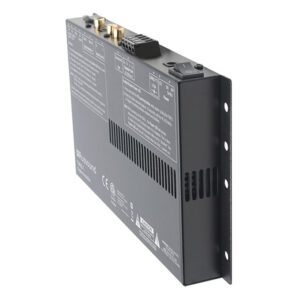

The Russound TVA2.1 is a compact low-profile amplifier designed to improve TV audio without adding a bulky AV system. Its slim design can be discreetly installed behind a TV or inside an in-wall panel, while built-in IR learning allows volume control from the TV or cable box remote you already use.
With 2 × 30W RMS Class-D amplification and three audio input options — analogue RCA, digital coaxial and optical S/PDIF — the TVA2.1 provides a simple and flexible way to connect a TV to a pair of speakers. A dedicated subwoofer output is also included for adding low-frequency support.
Features
- 2 × 30W RMS Class-D amplification into 8Ω
- Analogue RCA, digital coaxial and optical S/PDIF inputs
- 24-bit / 96kHz PCM stereo digital audio support
- Built-in IR learning for basic volume control
- Compatible with existing TV or cable box remote controls
- Dedicated line-level subwoofer output
- Compact low-profile design for discreet installation
- Detachable 4-pole speaker screw connector
- External 27V DC power supply
Applications
- TV audio upgrades
- Behind-TV speaker installations
- In-wall TV installations
- Bedroom and living room audio
- Adding stereo speakers to flat-panel TVs
- Simple multi-room audio installations
Specifications
| Amplified Channels | 2 |
|---|---|
| Power Output | 30W per channel at 8Ω, <1% THD+N |
| Amplifier Type | Class-D |
| Inputs | S/PDIF, Optical S/PDIF and Analogue Line Level |
| Digital Audio | 24-bit / 96kHz PCM stereo |
| Frequency Response | 40Hz–20kHz ±1dB; 20Hz −3dB |
| Subwoofer Output | Line Level; −3dB at 170Hz |
| Input Impedance | 22kΩ |
| Signal-to-Noise Ratio | >90dB, 20Hz–20kHz |
| Total Harmonic Distortion | 1% at 1kHz / 1W |
| Power Supply | 27V DC, 4.0A via external D235PS power supply |
| Shipping Dimensions | 11.6″ × 5.0″ × 7.5″ (29.5 × 12.7 × 19.1cm) |
| Shipping Weight | 2.0lb (0.9kg) |
