Description

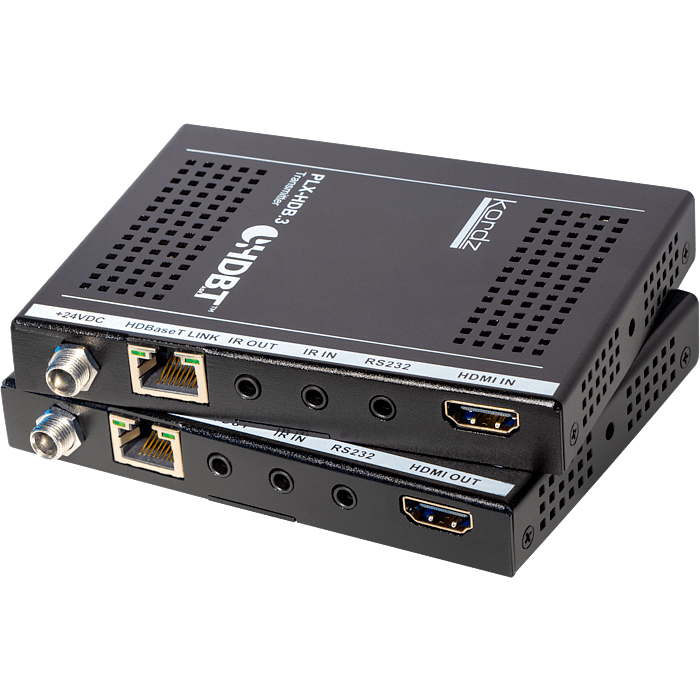

The Kordz PLX-HDB.3 4K60 UHD HDBaseT Extender is a professional HDMI extension solution designed to transmit high-resolution video, audio and control signals over a single CAT6 or CAT6a cable. Consisting of an ultra-slim transmitter and receiver, the system extends HDMI signals up to 40 metres at 4K60 UHD 4:4:4 or up to 70 metres at 1080p while maintaining reliable signal integrity.
Using HDBaseT technology and visually lossless compression (VLC), the PLX-HDB.3 supports HDMI 2.0, HDR content, HDCP 2.2 compatibility, IR pass-through and RS232 control. Power over Cable (PoC) allows both units to operate from a single power supply, simplifying installation and reducing cable clutter.
With a compact 16mm profile and all connectors positioned on one side, the PLX-HDB.3 is ideal for mounting behind displays, inside cabinets, meeting rooms, classrooms, hospitality venues and residential AV systems where space is limited.
Features
- HDBaseT HDMI extender kit (Transmitter and Receiver)
- Extends 4K60 UHD 4:4:4 HDMI signals up to 40m
- Extends 1080p HDMI signals up to 70m
- Supports HDMI 2.0 and HDMI 1.4
- Supports HDR video transmission
- 18Gbps bandwidth support
- HDCP 2.2 compatible
- Power over Cable (PoC) operation
- IR pass-through for remote control
- RS232 pass-through for device control and automation
- Supports CAT6, CAT6a, UTP, FTP and STP cabling
- Ultra-slim 16mm design
- All connectors located on one side for easier installation

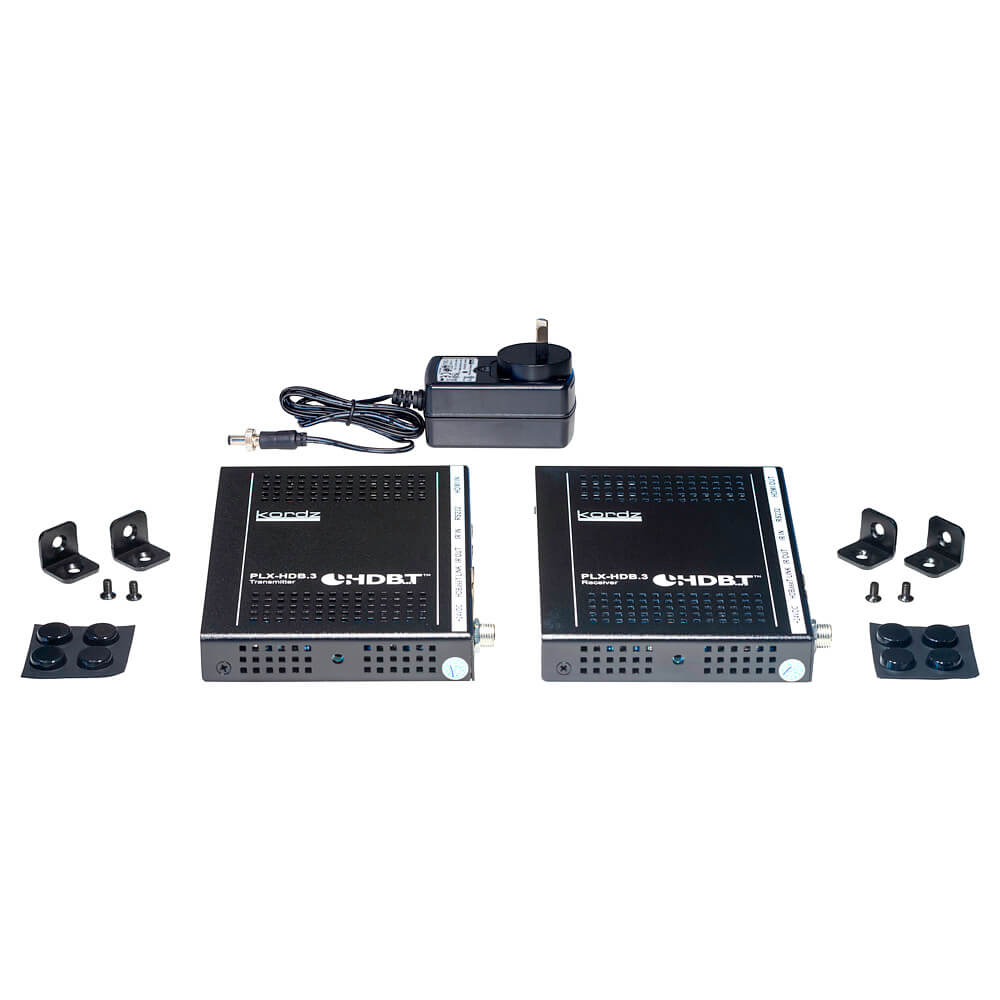

- Mounting brackets included
- 2-Year Warranty
Specifications
- Product Type: HDBaseT HDMI Extender Kit
- Transmission Technology: HDBaseT Lite VS010
- Video Resolution: Up to 4K60 UHD 4:4:4
- Maximum Distance (4K): 40m over CAT6/CAT6a
- Maximum Distance (1080p): 70m over CAT6/CAT6a
- Bandwidth: 18Gbps
- HDMI Version: HDMI 2.0 / HDMI 1.4
- HDR Support: Yes
- HDCP Support: HDCP 2.2
- IR Pass-through: Yes
- RS232 Pass-through: Yes
- Power over Cable (PoC): Yes
- Supported Cable Types: CAT6, CAT6a, UTP, FTP, STP
- Power Consumption: 14W Max
- Power Supply Input: 100VAC–240VAC, 50/60Hz
- Power Supply Output: 24VDC 2.5A
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -10°C to +50°C
- Humidity: 0%–90%
- Dimensions (Each Unit): 115mm × 84mm × 16mm
- Weight: Transmitter 150g / Receiver 153g
- ARC Support: Not Supported
- Warranty: 2 Years
