RJ45 Connector and Strain Relief

RJ45 Connector and Strain Relief (100pcs) – Kordz

$21.69$73.86 + GST

RJ45 CAT6 PUSH-THROUGH SITE TERMINATION CONNECTORS & STRAIN RELIEFS

Clear
SKU: N/A Categories: , ,

Description

RJ45 CAT6 PUSH-THROUGH SITE TERMINATION CONNECTORS & STRAIN RELIEFS

Kordz CAT6 RJ45 field termination connectors are designed and engineered for the installer to make installations easier. Even with something as small as an RJ45 plug, it must be engineered correctly and manufactured with precision processes to ensure that the connection is just going to work. These RJ45 connectors work with both solid and stranded cable 8 pins (gold plated) and 8 conductors. Kordz CAT6 RJ45 field termination connectors make it easy to quickly and efficiently terminate CAT6 wires of any length. Large cable openings reduce the distance between the wires and contacts, creating optimal performance and reliable connections every time. The Kordz Pass-through CAT6 connectors are designed for fast RJ45 connector installations. Conductors easily Pass-through the RJ45 connector for fast and easy verification of wire sequence

Strain relief’s sold separately: Available in jars of 100pcs. Tool required: Part #ONE-RJ45TOOL1



TECHNICAL SPECIFICATIONS

Performance Category: CAT6 Applications Standard: TIA/EIA-568-2-D Housing Material: Polycarbonate UL Flammability Rating: UL94V-2 [RoHS Compliant] Contact Type: Three prong pin for solid/stranded wires Contact Material: Copper Contact Plating: Gold Plating 50μ [1.27μm] Housing Colour: Clear Shield Type: Non-shielded Operating Temperature: -10ᴼ to 60ᴼC Voltage/Current Rating [UL Applications]: 125Volts AC/1.5Amps Dielectric withstanding Voltage: 1500Volts DC / AC peak Contact Resistance: ≤ 20mΩ Insulation Resistance: ≥ 500MΩ Insertion/Extraction Cycles: ≥ 1250 Cycles Wire gauge min/max: min: 0.92mm Ø, max: 1.02mm Ø Conductor diameter min/max: min: 0.405mm Ø (26AWG), max: 0.511mm Ø (24AWG) Maximum Cable Jacket Diameter: 6.5mm ODØ

PACKAGING

Packaging Type: Plastic re-usable jar Items per Jar: 100 pcs / jar Jar Size: 68mm[w] x 68mm[d] x 120mm[h] Master Carton Box: 32 Jars Master Carton Size: 265mm[w] x 341mm[d] x 330mm

RECOMMENDED TOOL

Model No: Kordz ONE-RJ45TOOL1

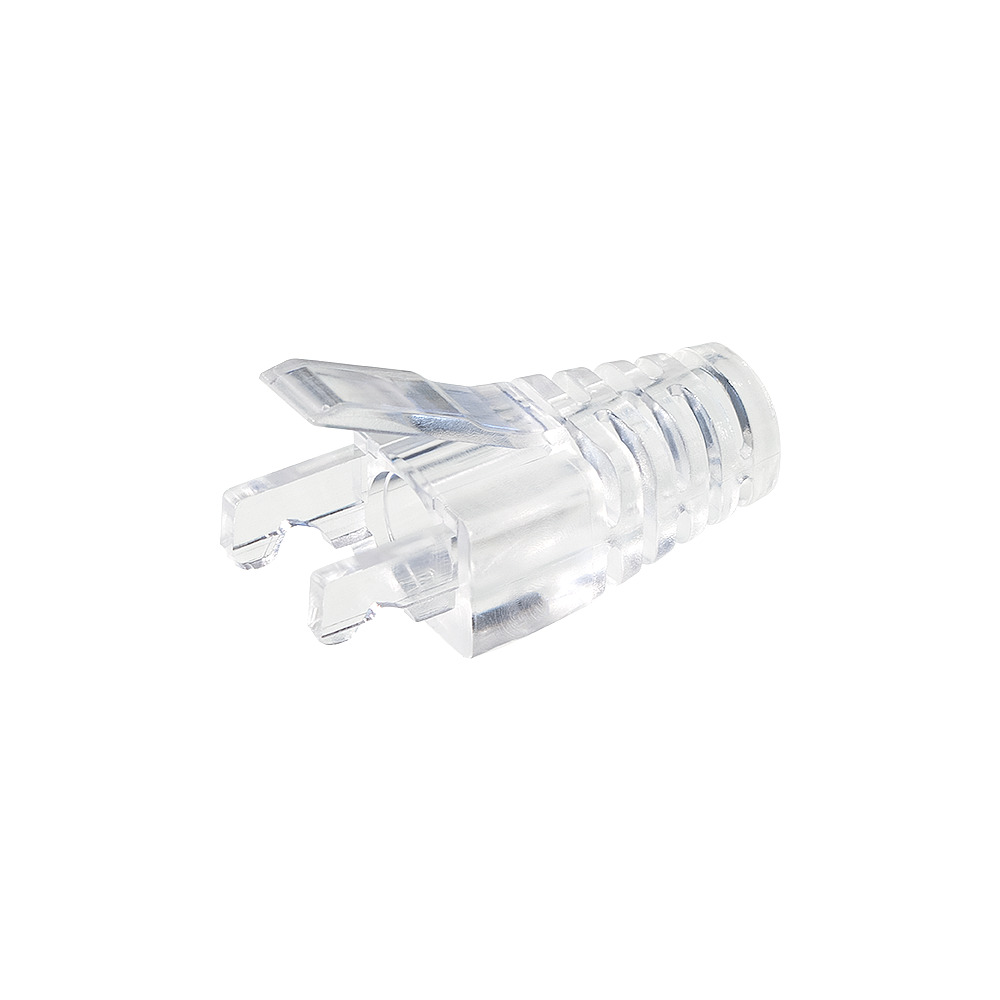

STRAIN RELIEF

Housing Material: Polycarbonate UL Flammability Rating: UL94V-2 [RoHS Compliant] Inner Diameter Available: 6.0mm ODØ Colour Available: Clear

PACKAGING

Packaging Type: Plastic re-usable Jar Items per Jar: 100 pcs / jar Jar size: 68mm[w] x 68mm[d] x 120mm[h] Master Carton Box: 32 Jars Master Carton Size: 265mm[w] x 330mm[d] x 341mm[h]

P1R45M-C6XU-CL            Connetor

P1R45S-C6XU-CL              Strain Relief

Additional information

Accessories

Connector, Strain relief

Download

Click here to download Technical Data Sheet
