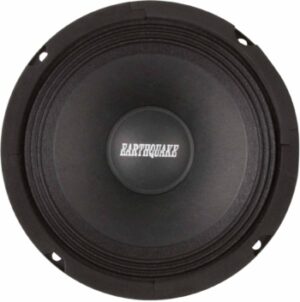

EQ6-8 Pro Audio Series (each)

$61.96 +GST

The Earthquake EQ line of Maximum Musical Output drivers are specifically designed to provide smooth, low-distortion mid-range/mid-bass output for the highest quality sound reinforcement applications. Because of their relatively high resonance and very low Qts values, the EQ line can be mounted in small enclosures while maintaining a smooth, peak-free response.

8 in stock

SKU: EQ6-8 Categories: , , Tags: , Brand:

Description

Features:

  • High efficiency / sensitivity
  • Multi roll cloth surround
  • New longer lasting, low mass cone
  • Stamped steel basket with jet-black finish
  • Enhanced sound quality
  • Heavy duty ferrite magnets
  • 8-Ohm or 4-Ohm impedance options
  • Edge-wound aluminum bobbin voice coils
  • Low harmonic distortion
  • Max output @ low wattage
  • Vented T-Yoke
  • Bumped Back Plate

Specifications:

  • Size: 6.5″ Midbass
  • Fs: 112Hz
  • Frequency Response: 112Hz – 10kHz
  • Max Power: 50W
  • Impedance: 8Ω
  • Sensitivity: 96dB
  • Qes: 0.958
  • Qms: 4.999
  • Qts: 0.804
  • Mounting Depth: 69.4mm
  • Cut-out Diameter: 144mm

***SOLD PER PIECE

Product Manual

Product Manual Download
