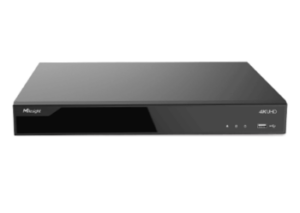

4K H.265 PoE NVR 5000 Series

NDAA Compliant

Milesight 4K H.265 PoE NVR 5000 Series supports alarm configurations and event search of Milesight Smart VCA. Once suspicious events detected, the devices can trigger alarms and recordings, helping you improve video surveillance efficiency.

Login for your trade price

SKU: MS-N5008-PE Categories: , , Tag: Brand:


  • Network Video Input 8-CH
  • Bandwidth Requirement 80Mbps (Incoming)50Mbps (Outgoing)
  • Output HDMI Output 1-CH, Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1920×1080/50Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz HDMI Supports Audio Output
  • VGA Output 1-CH, Resolution: 1920×1080/60Hz, 1920×1080/50Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
  • Dual Stream Support
  • Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/D1/VGA/CIF/QCIF
  • Synchronous Playback 1*(30fps @8MP), 2*(30fps @6MP), 2*(30fps @5MP), 3*(30fps @4MP),4*(30fps @3MP),6*(30fps @1080P), 8*(30fps @720P)
  • Format Video Compression H.265+/H.265(HEVC)/H.264+/H.264
  • Audio Format G.711/AAC/G.722/G.726
  • Storage SATA 2*SATA HDD (3.5”)
  • Capacity Up to 10TB capacity for each HDD
  • Record Recording Type Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)
  • Snapshot Type N/A
  • Playback Type General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback
  • Backup Video backup, Image Backup
  • Network Network Protocols IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS
  • Interface Network Interface 1*RJ45 10/100/1000Mbps
  • USB Interface 2*USB 2.0
  • Audio Input/Output 1*RCA/1*RCA
  • Alarm Input/Output 4-CH/1-CH
  • PoE Interface Interface 8*RJ45 10/100Mbps
  • Power Output ≤200W
  • Supported Standard IEEE 802.3af/at
  • General Compatibility ONVIF, API
  • Advanced Function ANR
  • ANPR Support
  • Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People CountingPower Supply AC 100V∼240V 50Hz∼60Hz
  • Consumption ≤9W(Without HDD, without enabling PoE)
  • Working Conditions Temperature: -10℃∼+55℃ / Humidity: 10%∼90%


Naming Convention

U – 4K

P – PoE Supported

C/T/E – H.265 Compression

Additional information

Shipping weight 2.6 kg
Shipping dimensions 380 × 3117.6 × 51.8 mm


Datasheet User Manual - Local Setup User Manual- Web Settings Quick Start Guide
