Digital Modulator DVB-T With IR Return Path (ARC-HDM-IR) – Arco

$521.74 +GST

DVB-T MODULATOR WITH IR Return Path



    This product is temporarily out of stock.
    Please complete the form below to enquire:




    Temporarily out of stock

    SKU: ARC-HDM-IR Categories: , , , , Brand:

    Description

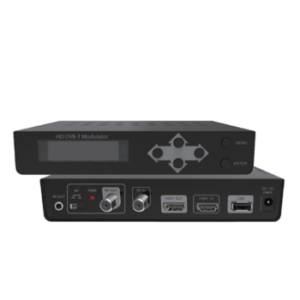

    Digital Modulator DVB-T With IR Return Path (ARC-HDM-IR) – Arco

    The Digital Modulator DVB-T is able to generate a signal in DVB-T format (Digital Terrestrial Television) from HDMI input. It is an H264 encoding, DVB-T modulation integrated device to convert HDMI signal to DVB-T RF out. It has been equipped with one channel HDMI input, one HDMI out(HDMI pass-through), and one DVB-T RF out. The Digital Modulator DVB-T adjusts the compression rate to the available bandwidth, using the modulation DVB-T parameters. It converts HDMI signal to DVB-T RF out with IR return path to allow channel changing from other rooms. Able to control remote control signals easily from coaxial cable. Long transmission distance and Simple Plug-and-Play installation

    What’s in the Box

    • One DVB-T Modulator with IR return path
    • One power adaptor
    • One IR Emitter

    Specifications

    • Input Channel  1
    • Video HDMI
    • Video System 480i/p, 576i/p, 720p, 1080i/p
    • Audio system HDMI

    Connections

    • HDMI IN HDMI IN
    • HDMI OUT  HDMI PASS THROUGH
    • RF Output (9VDC) RF outputs ( providing accessory power supply 9 volts DC for IR Pass)
    • DC Switch Power supply 9 volts DC for IR Pass
    • RF Input RF Combiner
    • USB Firmware upgrade
    • IR Out IR Emitter output



      **IR Receiving Eye Sold Separately







    Additional information

    Shipping weight 1 kg

    Download

    Click here to downloadModulator with IR return - User Manual Click here to downloadModulator with IR return Click here to downloadModulator with IR return Setup Click here to downloadModulator with IR return Diagram
