Description

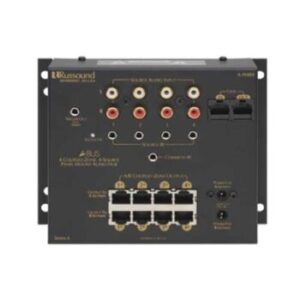

The A-H484 multisource hub allows you to play up to four audio sources through your A-BUS system. You can select any source independently in each zone at the keypad or with an A-LRC1 remote control. Each zone may have one or two rooms with A-K4 Amplified Keypads.
To control the sources, you can use either the A-LRC1 or the source manufacturer’s remote. The A-H484 passes source commands from each zone to the source selected in that zone. It also provides a common IR output to pass source commands from all zones.
The A-H484 provides four zones. Multiple A-H484 hubs can be linked together to accommodate larger systems.
Features:
- Serves up to eight rooms in four zones – two rooms per zone
- Multiple hubs link together to create more zones
- Easily mounts on shelf or wall near audio equipment
- Provides both routed and common IR outputs as well as 12-volt trigger output
